Peb lub HonourCrane ruaj ruaj hydraulic dock leveler yog qhov ruaj khov, ruaj khov kev daws teeb meem tsim los txuas qhov siab qhov sib txawv ntawm qhov chaw thau khoom thiab lub txaj tsheb thauj khoom, ua kom muaj kev nyab xeeb thiab muaj txiaj ntsig kev ua haujlwm forklift hauv warehouses, logistics chaw, thiab cov chaw tsim khoom. Tsim los rau hnyav- kev ua haujlwm hnyav thiab ntev- kev cia siab rau lub sijhawm, lub platform no yooj yim rau cov txheej txheem thauj khoom.

Daim ntawv thov

Warehouses & Distributions Centers

Manufacturing & ntau lawm chaw

Logistics hubs & hla - docking terminals

Cov chaw muag khoom ua kom tiav

Ua haujlwm Video:

Feature

1.Powerful Hydraulic Performance

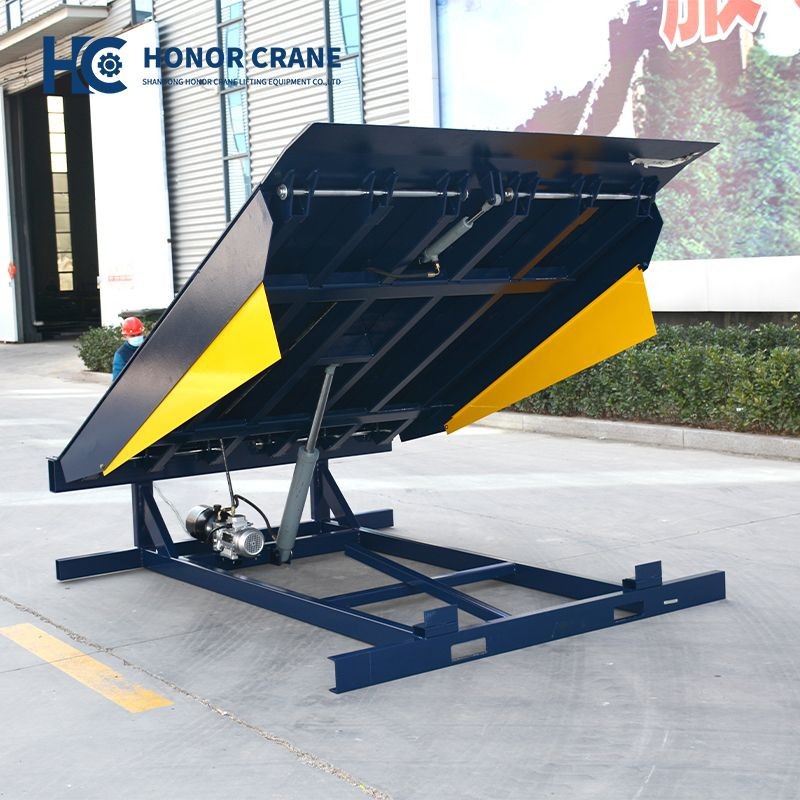

Nruab nrog lub siab -kev ua haujlwm hydraulic lub tog raj kheej siv los ntawm 0.75 kW lub cev muaj zog, nws ua kom du thiab meej tilting txav (0.3 m nce / 0.2 m poob), kom ntseeg tau ceev thiab raug docking nrog forklifts ntawm qhov sib txawv.

2. Cov qauv siv zog
Tsim los ntawm cov phaj tuab tuab, muaj qhov puv - loj 2.0 x 2.5 m platform thiab 0.4 m tus nplaig phaj, nws muab kev ruaj khov, poob siab - pub dawb rau cov forklifts txawm tias nyob rau hauv qhov hnyav ntawm 6 txog 12 tons.

3. Txhim khu kev ruaj ntseg
Anti-nplua plav steel patterned board daim hlau tiv thaiv kev hloov thiab zawv zawg, thaum qhov kev hloov pauv ntawm daim di ncauj yuav txo qhov cuam tshuam thiab tiv thaiv cov khoom thauj thaum lub sijhawm ua haujlwm.

4.Fixed Loading Platform
Tsim los rau tus qauv 2.08 x 2.54 x 0.6 m qhov tob, nws tsim kom muaj qhov chaw ruaj khov ruaj khov tsis tas yuav tsum tau hloov chaw.

5. Lub neej ua haujlwm ntev
Electrostatic hmoov txheej thiab kaw hydraulic Cheebtsam muab kev tiv thaiv corrosion zoo heev thiab tsis tshua muaj nqi txij nkawm, ua kom muaj kev ua haujlwm tsis tu ncua txhua hnub.

Khoom Specifications

Tsau Dock Leveler	Specification
Rated Peev Xwm	6 ton
Platform Size (Length)	2m
Platform Size (dav)	2.5m
Daim di ncauj dav	0.4m
Mus ncig teb chaws	0.3m
Nkag mus ncig	0.2m
Installation Pit Size	2.08×2.54×0.6m
Lub cev muaj zog	0.75 kwm

Peb Qhov Zoo

Tsau Dock Installation

Fits tus qauv qhov (2.08 × 2.54 × 0.6 m), tsim ib qho chaw ruaj khov, ruaj khov ntawm qhov chaw nres nkoj thiab lub tsheb thauj khoom kom muaj kev thauj khoom ntau zaus -.

Precise Hydraulic Kho

Tsim los ntawm 0.75 kW lub cev muaj zog thiab hnyav -lub tog raj kheej hydraulic, nws muab kev tswj kev nce siab (0.3 m) thiab nqes (0.2 m) qaij strokes rau kev sib raug zoo nrog cov tsheb sib txawv qhov siab, kom ntseeg tau jolt- dawb forklift passage.

Robust thiab Durable Structure

Cov qauv steel thav duab zoo, ua ke nrog tag nrho - loj 2.0 × 2.5 meter platform, tuaj yeem txhawb nqa 6-12 tons. Sandblasted thiab hmoov-coated rau lub sij hawm ntev corrosion kuj.

Txhim khu kev ruaj ntseg tsim

Los tiv thaiv- plam steel platform, ntxiv dag zog rau 0.4-meter di ncauj phaj, thiab kev ruaj ntseg kaw qhov system zoo tiv thaiv kev swb thiab kev txav mus los.

Tsawg-kev tsim kho

Lub kaw lus hydraulic thiab cov qauv ruaj khov txo qis hnav, txij nkawm zaus, thiab tag nrho cov nqi khiav lag luam.
